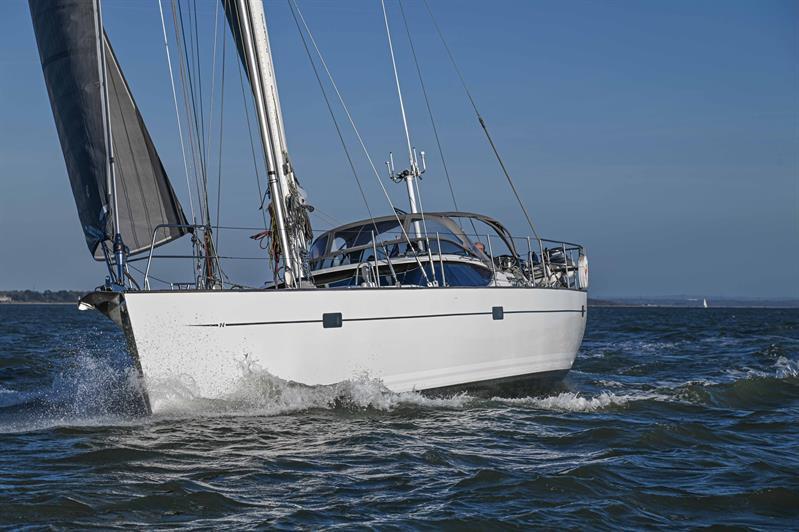

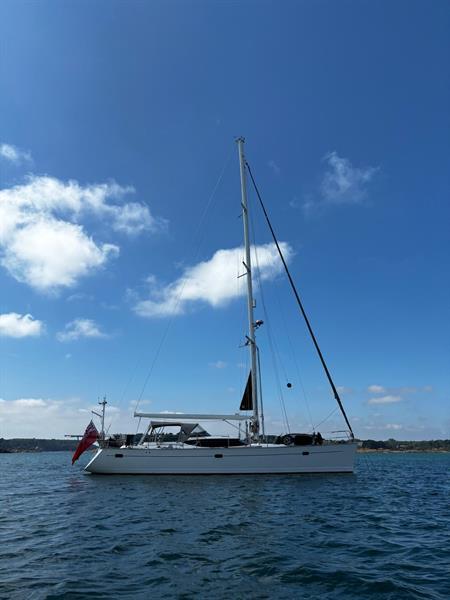

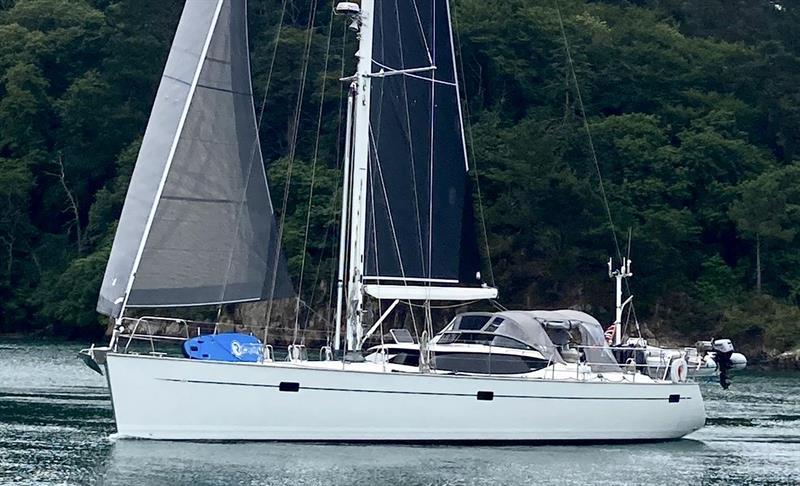

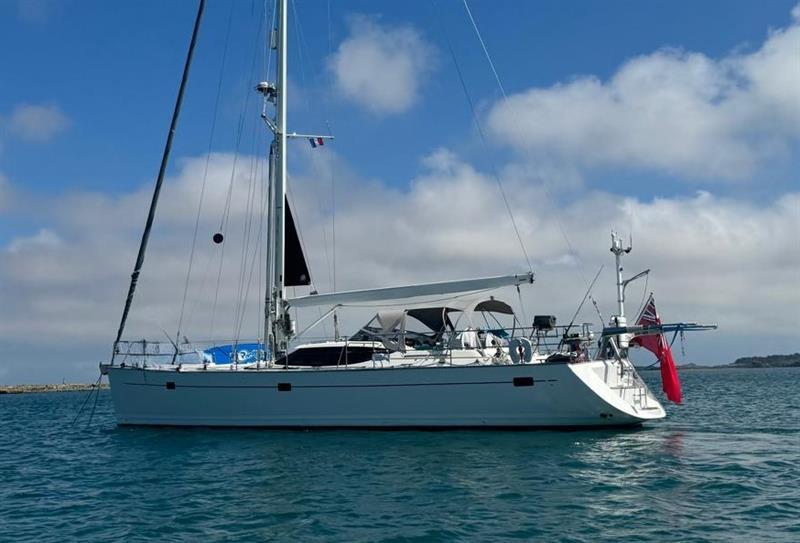

Najad 570 – 2007 – Nova Vida - Specification
Construction
Hull
- Vacuum infused hull in sandwich construction including multi-axial E-glass maths, vinylester resin and divinycell core material.

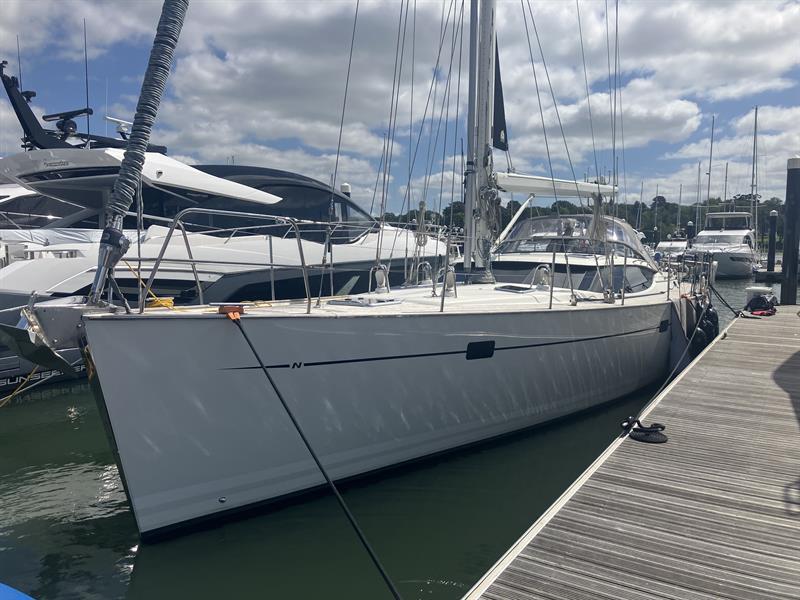

- Light Grey painted hull with Black boot top and cove lines - 2024
- Bulkheads and floor structure laminated to both sides of the hull.
- Below the waterline, scraped to gelcoat and 5 Coats international epoxy primer and 3 coats international anti-fouling applied (2021)
- Antifouled an anodes checked Sept 2024
- The inside of the hull is top-coated (flowcoat)
- The hull is reinforced with longitudinal and transverse floor plate construction, which supports the keel fittings, mast, engine frame, tanks and cabin soles
- There are additional longitudinal reinforcements in the hull, stringers, for maximum hull strength
Deck
- Vacuum infused deck and coach roof in sandwich construction including multi-axial maths, vinylester outer skin Divinycell core material and polyester inner skin Reinforced single laminate (no core) is used in high stress/important areas
- Deck colour is white
- Hull and deck are bolted and glued together
Keel (shoal draft) and Rudder & Steering System
- Lead Keel - Removed Keel - bolts checked and refitted 2022
- The rudder is a balanced spade-rudder with self-aligning bearings and an acid-resistant solid stainless steel rudder post
- The steering system is a rotating torque tubes system
- Rudder dropped, full steering system check, replacement of lower bearing, lip seals etc. (2021)
- Emergency steering is on the rudder post and operated by a tiller
Interior
Nova Vida has a versatile layout featuring twin aft cabins, bunk cabin forward of the mast on port side and a large owners cabin forward complete with en-suite head and stand alone shower. She is ideal for a family, chartering or live aboard cruising. The condition is truly immaculate. The unstained African mahogany and Brazilian Jatoba is in near perfect condition.
General
- 5 independent air conditioning units supply ample cooling to all cabins, galley and main saloon.
- Heating: 2 x Eberspacher 5DL units.
- The flooring is made of varnished Jatoba with wenge inlays. There are inspection hatches throughout and ample under floor stowage opportunities.
- The headlining is cream white covered panels
- Hand sewn black leather covers multiple stainless steel hand holds throughout
- Nightlights are present throughout all areas including cabins, galley and heads
- Oceanair white cream blinds cover the large pilot house windows offering ultimate privacy while down below
- All hatches have built in solid covers for privacy, as well as screens.
- BOSE sound system with subwoofer and 5 x speakers in saloon, 2 x cockpit speakers, 26” TV & Sound bar new 2024

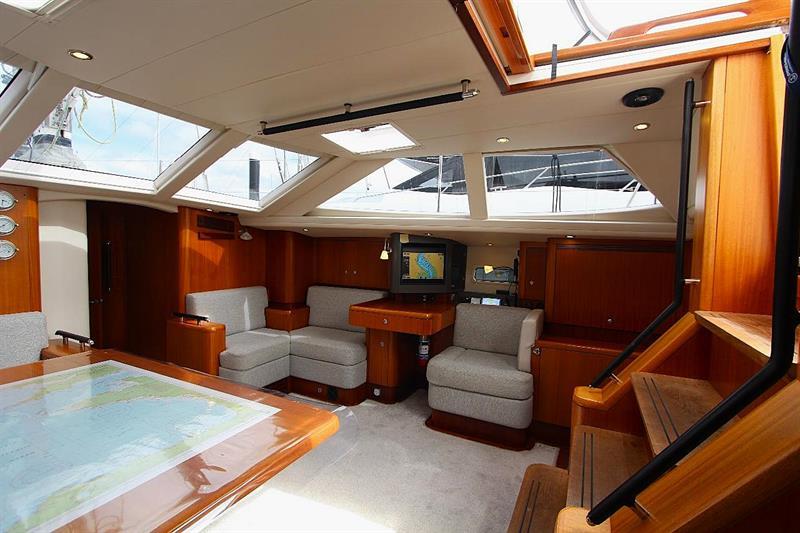

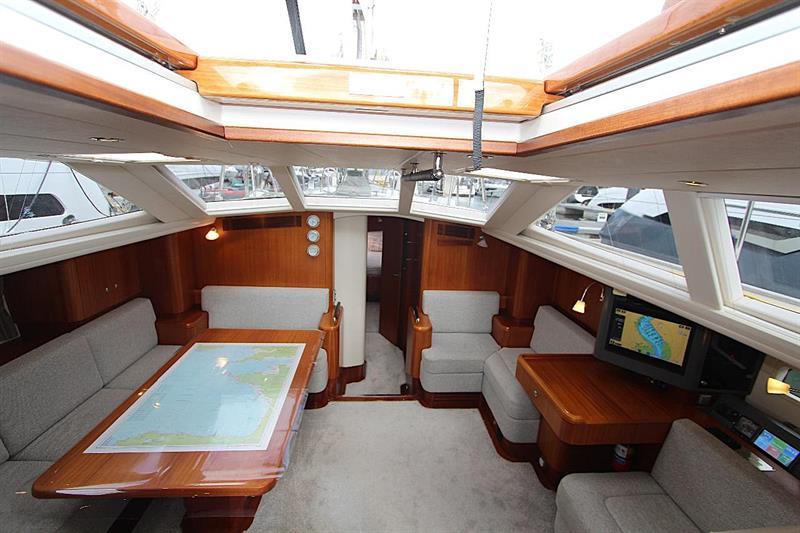

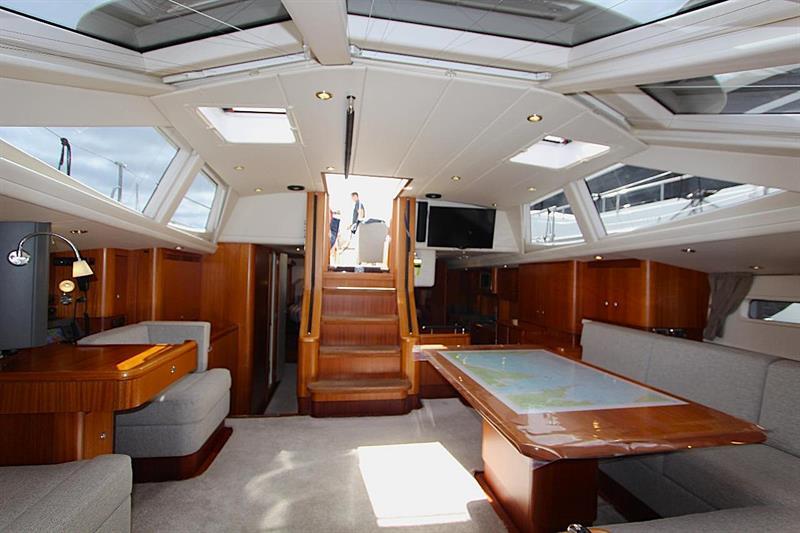

Saloon

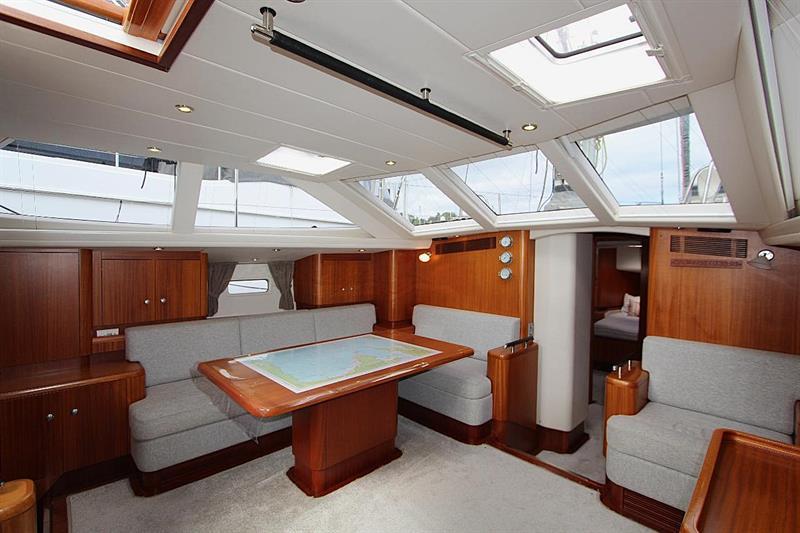

The large feel of the main saloon on this yacht truly sets her apart from others in her size range. The full beam saloon allows for comfortable entertaining of 10 guests. To port is an ‘L’shaped setee which surrounds the fixed table which features an inlay of the signature Najad, “N.”
To Starboard is the Navigation area and an additional seating nook with a bench seat facing to port, and a second seat facing aft. Dimmable LED lighting throughout, and additional reading lights provide ample lighting.
The companionway steps are wide, sturdy and flanked by symmetrical stainless steel (leather covered) hand holds allowing ease of movement from down below to on deck. The steps are unvarnished, and accented by caulked strips to provide additional traction. The lower 2 steps are removable, offering practical stowage space. Nova Vida features custom built shelving and drawers to allow for maximum organisation!
The saloon upholstery is in light grey and was replaced in 2023
New carpets throughout with bound edges in 2023
New LED lighting throughout 2022

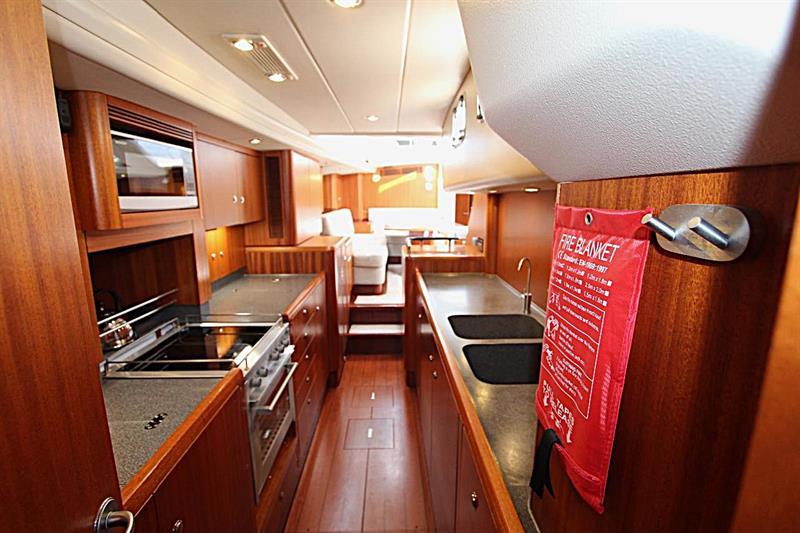

Galley

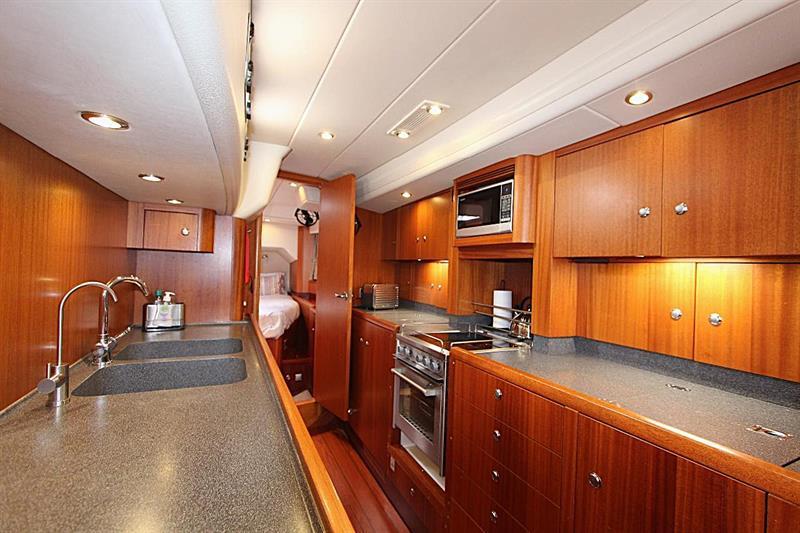

- The Najad 570 offers a real ‘chef’s galley,’ and captures the immediate envy of guests onboard. It is located to port and offers tremendous amounts of work space.
- Counter tops are blue and white speckled corian.
- Twin stainless steel sinks, with fully pressurised hot and cold freshwater operated by a single lever tap
- Designated drinking water tap Acura ArrowMax UV sterilising/filter tap
- Large Oceanchef Induction cooker - 2023

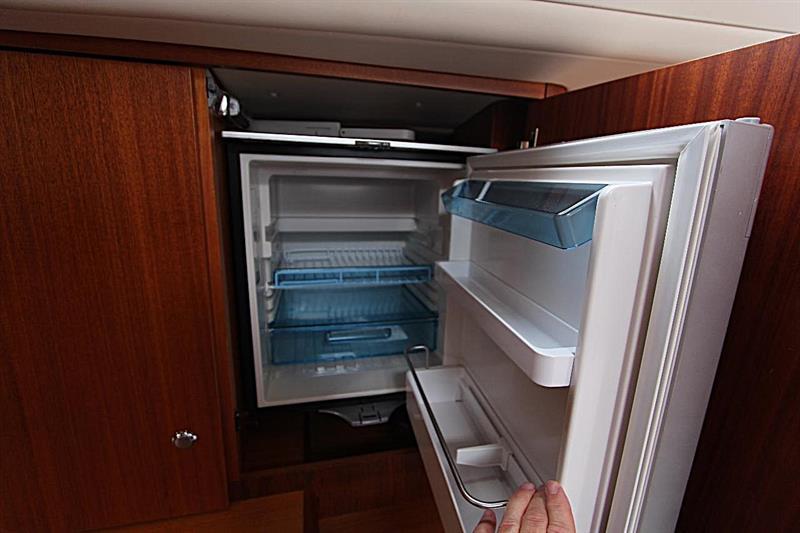

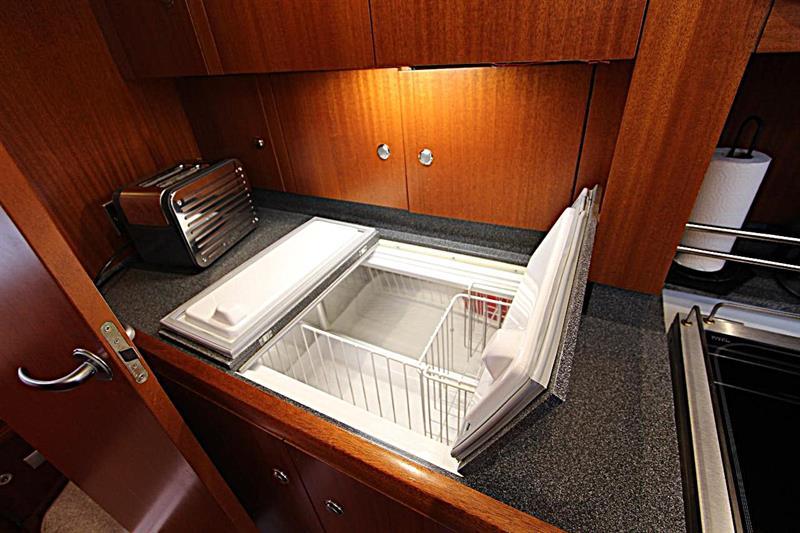

- Insulated refrigerator box (92L) and deep freezer box (40L) 2023
- Ample stowage for all glassware, dishes etc. Complete with fiddles for secure stowage
- Nova Vida will be sold with all cookware, glassware, full set of ceramic and plastic dishes, cutlery etc.
- Fixed Stainless Steel microwave
- Extracting Fan above cooker
- Full size Miele washer/dryer combo unit 2023
- Fridge in Saloon 2023
- All fridges serviced and regassed
- UV water filtered tap in galley 2023

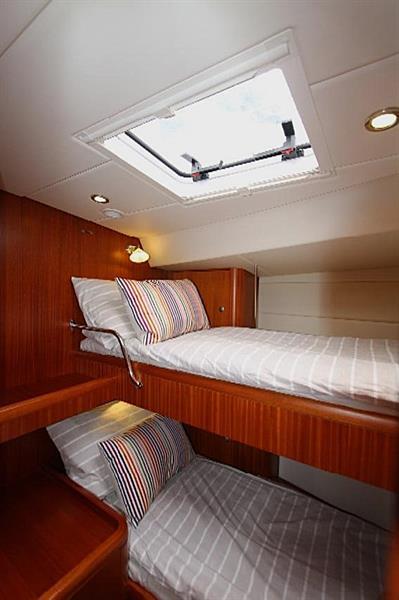

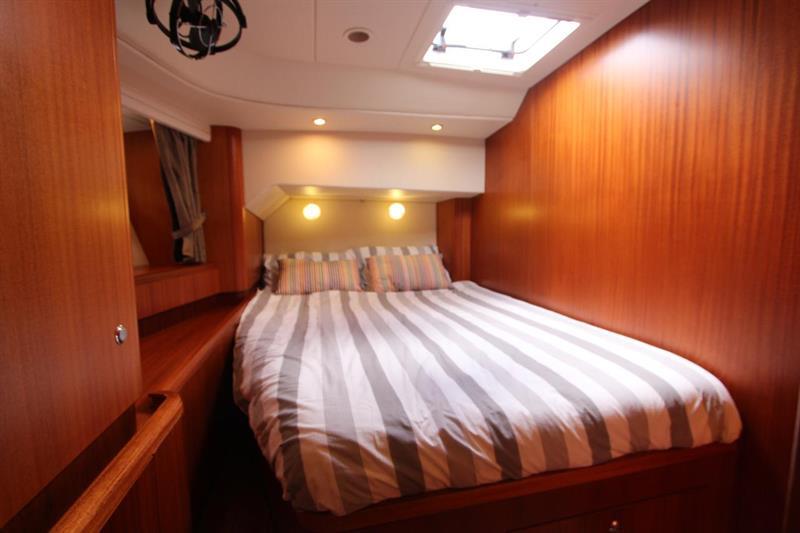

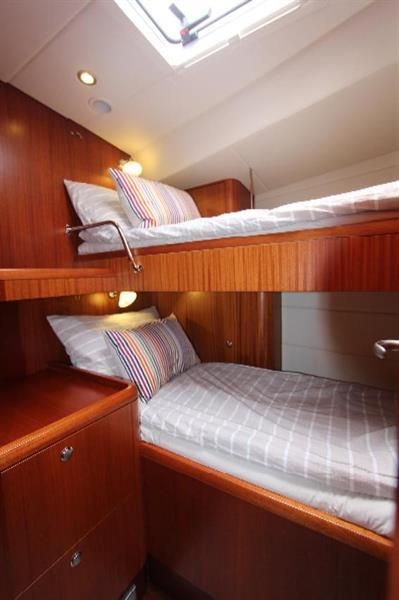

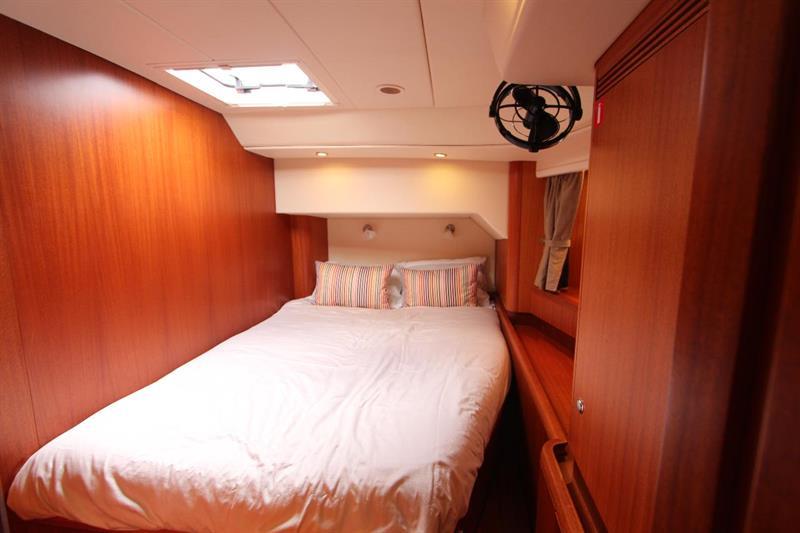

Cabins

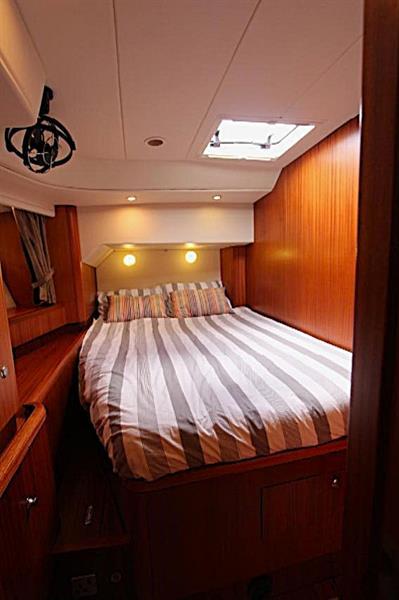

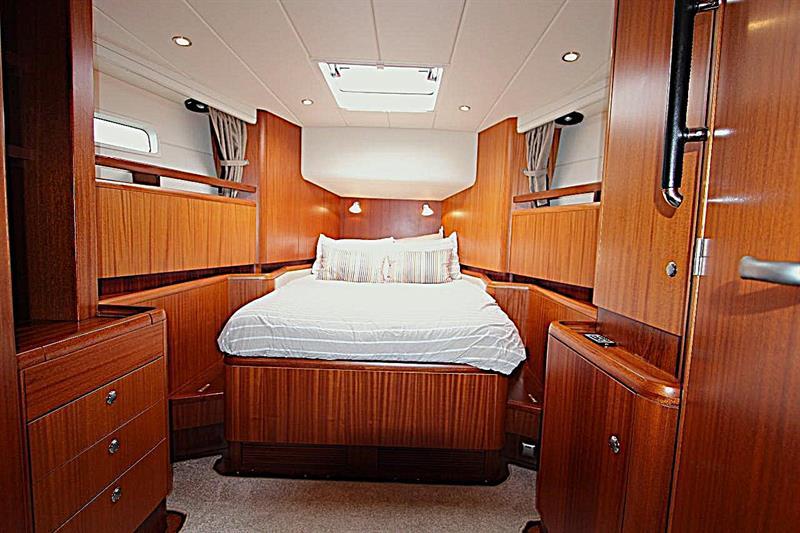

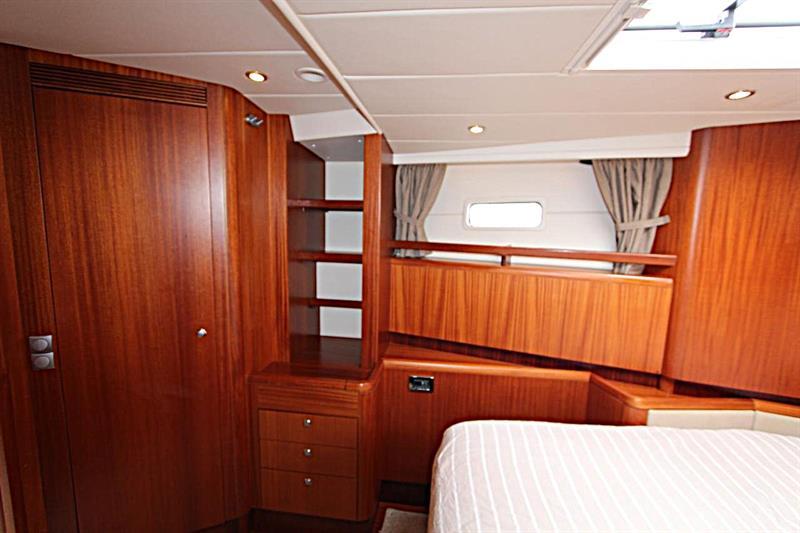

All cabins are complete with bedding. Both aft cabins offer double berths, stowage below bunk, wardrobe lockers and drawers, reading lights, overhead lights, overhead hatch. Bunk cabin forward of mast offers single upper and lower berth. Master cabin (forward) is full double, complete with hanging lockers, drawers, shelving, book shelves, independent sound system and en suite head and shower

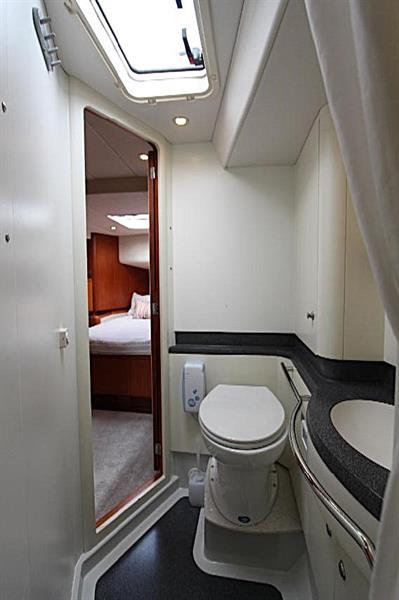

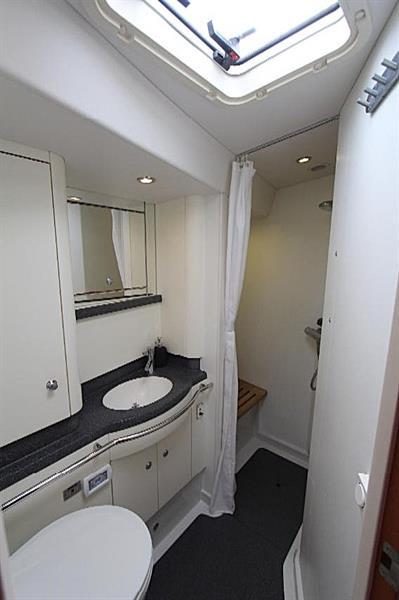

Heads & Showers
There are 2 heads onboard. One is located as an ensuite to the mast cabin, and second is located adjacent the access to the engine room in the starboard side companionway.
- Laminated bulkheads including washbasin, bench surface and removable floor made of corian.
- Electrical drain pumps for both showers

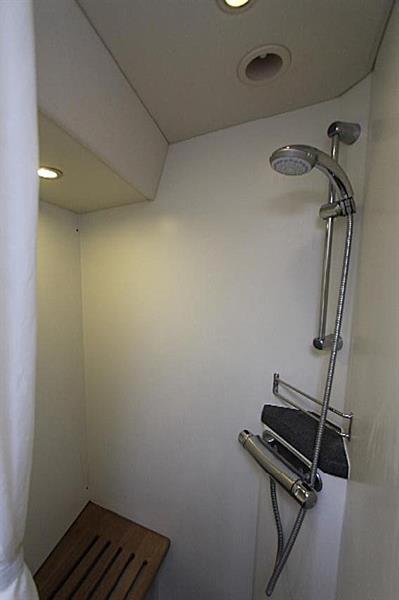

- New showers 2023
- Mirror and behind mirror stowage
- Hot and cold pressurized water operated by single lever tap in shower and washbasin
- New Fresh Water pump 2023
- |New Jabsco Electric toilets in both heads with designated holding tanks and pipework 2023
- Seasure Blue toilet cleaning system 2023
Rig
- Seldén rig, keel stepped fractional 19/20 rig with three sets of spreaders
- Mast and boom in anodized aluminum profile - painted white
- Rod Rigging (BSI), all rod and turnbuckles replaced (2021)
- Mast unstepped and a full rig check 2024
- D2 rods replaced 2024
- Hydraulic In-mast furling
- Hydraulic main outhaul
- Hydraulic Genoa furling
- Furling controlled by push buttons from the cockpit
- Hydraulic backstay adjuster and boom vang, controlled from the cockpit Serviced 2024
- All other hydraulics serviced (2021)
- Detachable inner forestay for hank on staysail
- All sheets, preventer, topping lift, traveller, and spinnaker halyard replaced with Glestein rope (2021)
- New English Braid outhaul plus spare 2024
- Mast removed and all wiring checked or replaced (2021)
- New wind instruments and lightning dissipators installed (2021)
- 6 x new LED spreader down lights and deck lights installed (2021)
- 6 x new LED spreader uplights installed (2021)
- LED Boom lights (2021)
- Radar reflector on mast
- Fully integrated, forward facing camera on mast and radar post installed (2021)
- Paint and priming on mast as necessary (2021)
- Full rig check and certification (2024)
- Aluminium whisker pole, stowed on mast.
- Mast mounted stowage bags for various lines
- Horn on the mast
- Windex with light

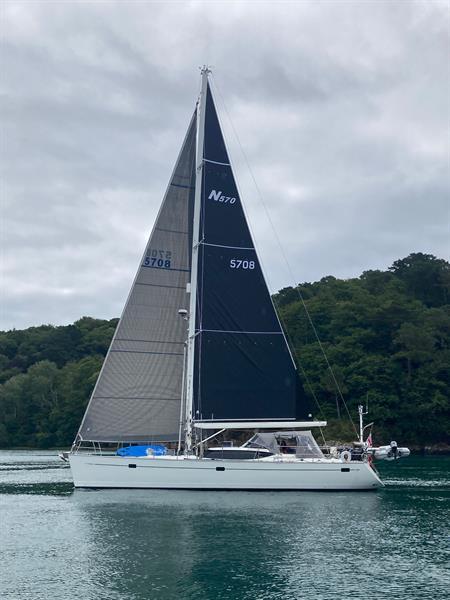

Sails
- Mainsail (grey), Doyle Straits 1200 (2023)
- Genoa (grey), 125%, Evolution ‘Expedition’ (2021)
- Assymetric Spinnaker, A2.5, Evolution (2021)
- Inner staysail (2007, never used)
Deck

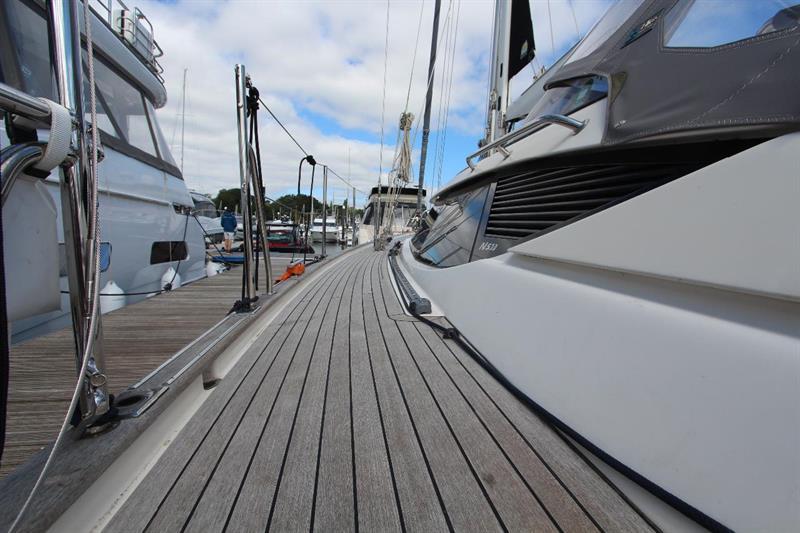

- 12 mm solid Burmese teak on deck, cockpit, swim platform and gangway (new 2021)
- Teak capping fitted with stainless steel rail on the outside for best possible protection

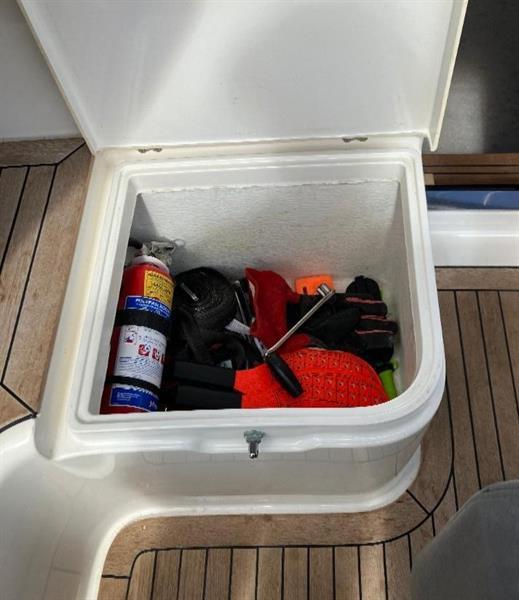

- There are three large stowage lockers on the aft deck accessed via waterproof flush Rondal hatches
- A sail locker is located on the forward deck accessed via a waterproof Rondal hatch
- A stowage locker is located at the transom together with separate drained locker a for gas bottles
- Lifelines 85 cm off deck. Solid stainless steel to midship, complete with removable side gates and portable stainless steel swim ladder. All lifelines, pushpit and pulpit replaced (2021)
- 3 meter stainless and teak fixed gangway with removable stanchions (2021)
Winches
- Andersen winches, full stainless, self-tailing
- All winches stripped and fully serviced in 2021
- 2 x electric genoa winch, stainless steel (Andersen 72 STE)
- 2 x electric main sheet & traveler winch, stainless steel (Andersen 52 STE)
- ** Genoa and main sheet winches, 2 speed and can be operated with remote.
- 2 x manual mast winches Andersen 46ST
Sailing Gear
- Lewmar sailing gear and Spinlock clutches
- Main sheet track system, mounted aft of the cockpit, including adjustable ball-bearing car from cockpit.
- Sheet and trim lines run through 4 x Spinlock line clutches
- Genoa sheet track system with adjustable ball bearing cars, trim lines led to 2 clutches located just outside the cockpit for easy access
Mooring Equipment
- Capstan winch in bow locker
- 2 x bow cleats, stainless steel
- 4 x spring cleats, stainless steel
- 4 x stern cleats, stainless steel
- ** All cleats complete with stainless steel protection, rub bars, to prevent chafe
- Various mooring lines
- 2 x floating lines for stern to applications
- 8 x large fender
- 2 x small fenders
- Two Fender blankets supplied by Elite covers for protecting hull from fender marks 2024
- 1 x inflatable fender (2021)
- Boat hook
- Mooring lines Heavy and light weight 2023
Anchor System
- Windlass with capstan (Lofrans X3 Project 1.7 KW), mounted in anchor locker (2021) Can be operated from cockpit, bow or via wireless control
- Solenoid replaced 2023
- Lofrans Chain Counter mounted at helm station (2023)
- 100 meter, 12mm stainless steel chain (2023)
- 60 KG, Ultra, stainless steel anchor (2021)
- Anchor wash down system, salt or fresh water (pump rebuilt 2021)
- Spare (stern anchor), Fortress with 25 meter chain and 60 meter rope.
Skylights and windows
- Pilothouse windows made with tinted and toughened glass
- 7 x fixed overhead hatches
- 4 x port hatches (galley and aft companionway)
- 6 x dorade type ventilators and protection bars, stainless steel
Sailing Gear
- Lewmar sailing gear and Spinlock clutches
- Main sheet track system, mounted aft of the cockpit, including adjustable ball-bearing car from cockpit.
- Sheet and trim lines run through 4 x Spinlock line clutches
- Genoa sheet track system with adjustable ball bearing cars, trim lines led to 2 clutches located just outside the cockpit for easy access

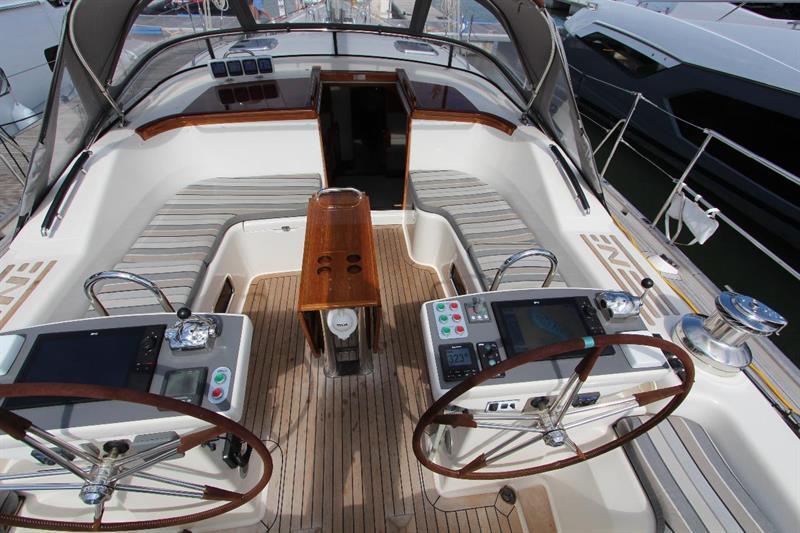

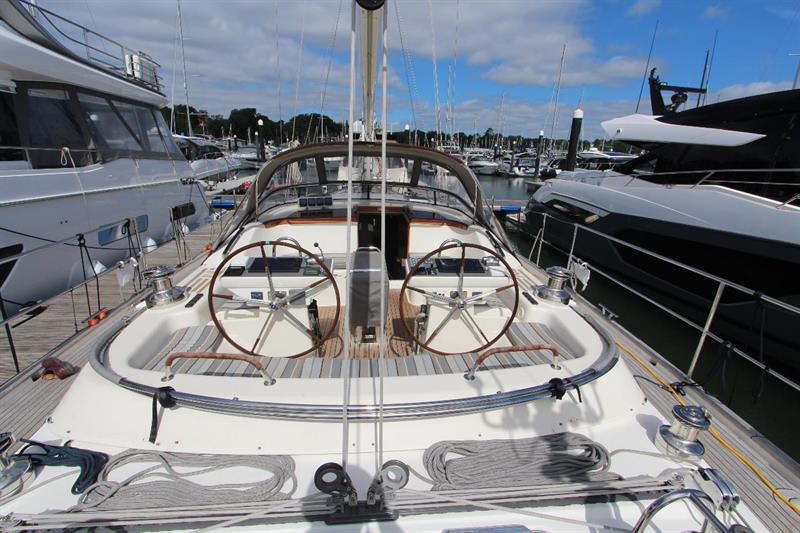

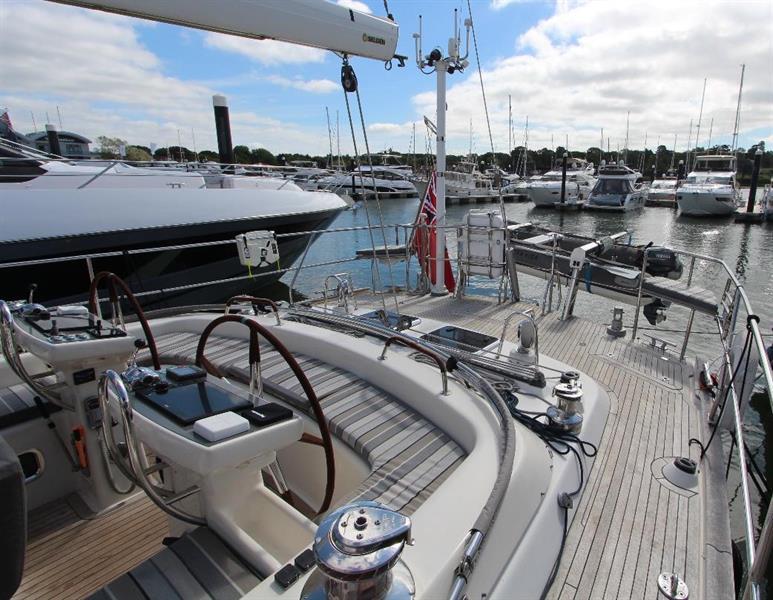

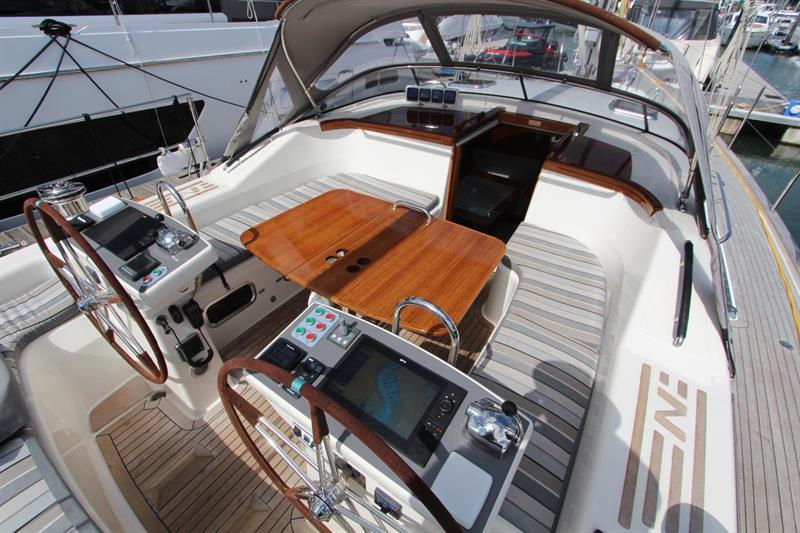

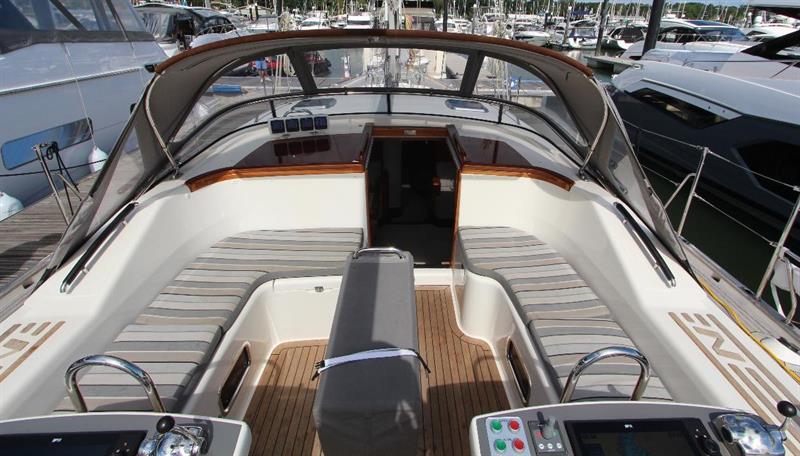

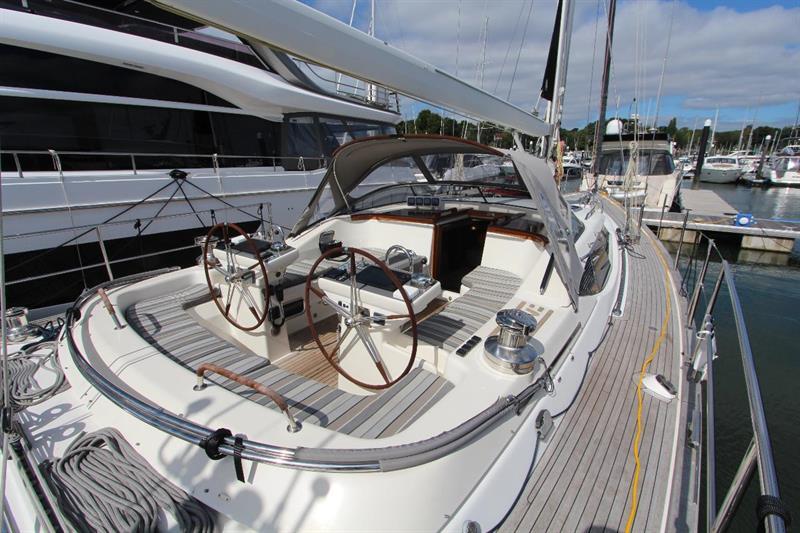

Cockpit
- High gloss varnished teak entrance with integrated grab rails
- Foldable, varnished cockpit table and foot supports (new varnish, 2021)

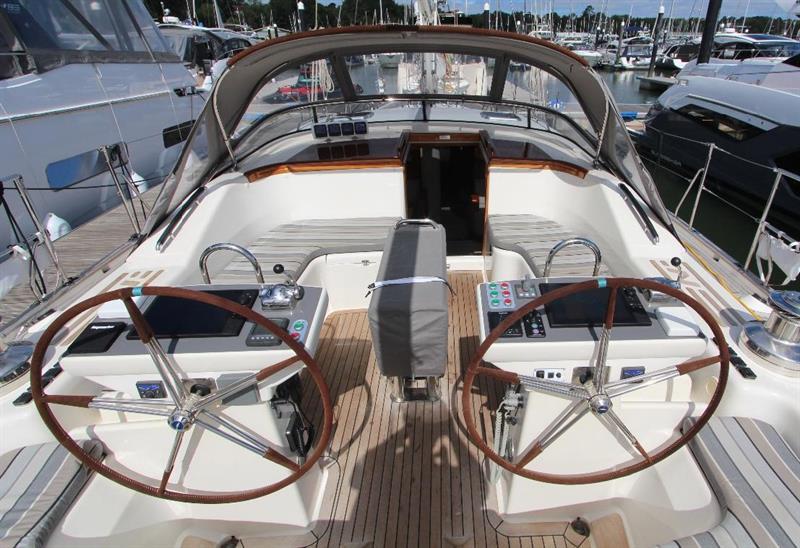

- 2 x helm stations, engine controls and steering wheels.
- Cockpit locker
- Fixed windscreen
- Spray hood
- Bimini
- Cockpit cushions (new 2021)
- 2 x Raymarine chart plotters
- 4 x i70 Raymarine repeaters
- Compass
- Heater outlet
Misc Deck Equipment
- Life raft, 6 persons. Inspection valid

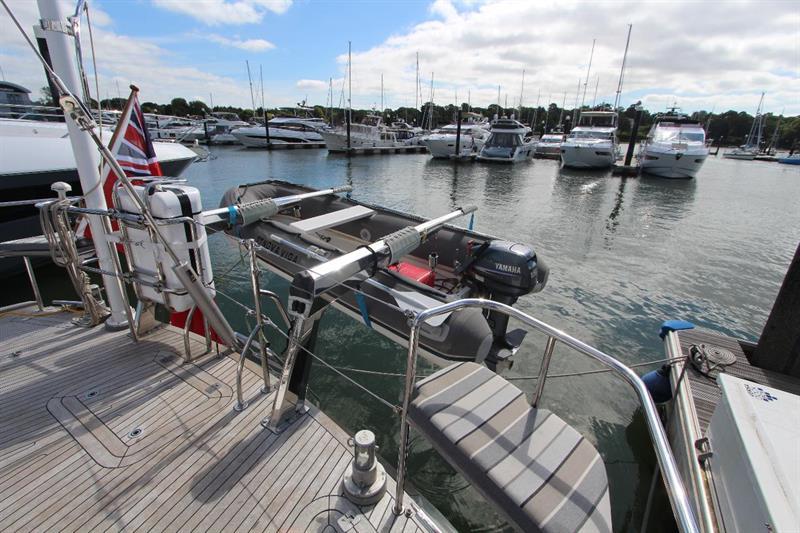

- Simpson Electric Davits 2023
- Wireless remote control for davits
- Outboard engine crane and mounting bracket
- Hard wired compressor in aft locker for inflating dinghy, SUP, water toys, fenders
- Radar post. (Repainted 2021)
- 2 x deck cameras
- Swim ladder
- Aft deck shower (2023)
- Deck mounted nav lights (2021)
- Removable stainless steel brackets for 2 x paddleboards
Canvas and Cushions
- Full Cockpit cover which can also form a Bimini, complete with removable side sun screens (2023)
- Led lights in the stainless hoops for the cockpit cover (2023)
- Raised Spray hood to suit cockpit tent (2023)
- Steering pedestal and wheel covers (2021)
- Companionway cover and screens (2021)
- Boom awning/sun cover (2021)
- Upper deck lounge cushions (3 pieces, 2021)
- Cockpit cushion seats and pillows (2021)
- Hatch Covers (2021)
- Cockpit table cover (2021)
- Full all over winter cover (Jeckells) 2023
Mechanical
Engine & Propulsion

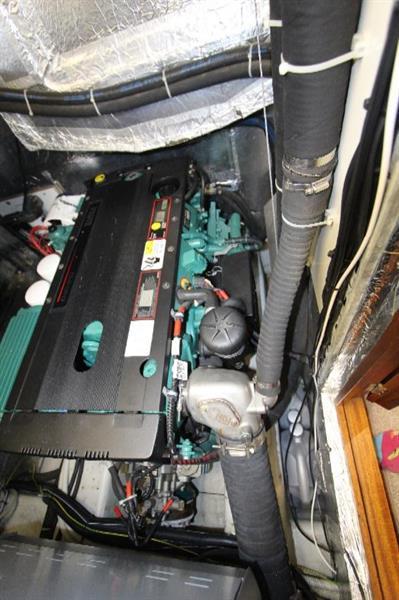

- Volvo D4 180 HP main Engine (1650 hours)
- Shaft drive, equipped with Aqua Drive to reduce vibrations and axial force from prop). Integrated rope cutter on prop
- 4 blade folding varifold propeller
- Extra insulation in engine room, access to both side of engine via engine room door and removable panels in galley
- Aluminium lining in engine room
- Exhaust separator
- Twin engine controls at helm stations
- Bow Thruster (Sidepower 200 TC 24V/13hp)
- Stern Thruster (Maxpower)
- Generator: Whisper 8 Ultra, Upgraded to 10Kva (2023)
- Engine room fire extinguisher
- Full engine and generator service completed winter 2023. All spares onboard and included in sale
- New stainless steel exhaust elbow 2023
- Skin fittings in engine room replaced 2023
Watermaker
- Seamar 350L/hour capacity. Feeds both water tanks. (New 2021)
Tanks
- All tanks are made from acid resistant to stainless steel and complete with inspection hatches and level gauges. Serviced and calibrated 2021
- Fuel: 1002 L (Forward tank 625L, Aft: 377L)
- Fresh Water: 1002L (Forward: 625L, Aft: 377L)
- Holding tanks: 2 x 90L (Can be emptied on deck through vacuum suction or direct to sea, gravity fed).
- Hot Water: 60L
Pumps
- Manual Bilge pump
- Electric Auto bilge pump with float switch (Rule)
- Electric emergency bilge pump, high capacity (Rule)
- Bilge Alarm (2021)
- Bilge cycle counter (2021)
Electrical
- The domestic system voltage is 24V
- Domestic battery bank was upgraded to Victron lithium system with 5 x 200Ah 24v batteries and two Victron 3Kw Multiplus inverter chargers. These can be monitored and controlled from your phone and via the large touch screen giving you complete control and monitoring at all times. All the other onboard batteries can also be monitored in the same way (all new 2023)
- 2 x separate AGM starter battery for main engine and generator (2023)
- 1 x emergency change over switch for emergency start of either engine or generator (2021)
- Stern thruster is powered by a seperate bank of AGM batteries which can also power the ship if the Lithium battereis were to fail. (2023)
- 220v shore power system. 1 inlet @ 32 amp (upgraded from 16A, 2021), protected by 2 x isolation transformer (upgraded 2021)
- 24V – 12V DC/DC converter (mastervolt)
- 220V outlets in all cabins, navigation area, engine room, galley and aft locker
- 12V outlets in all cabins, Nav area
- 2 x USB chargers at Nav station
- 2 x USB c chargers on pedastals
- Grounding Plate
- Victron battery monitor
- Main engine alternators (24v @ 115A / 12V @ 115A)
Navigation and Electronics
- Autopilot 1: Raymarine ACU-4000 Linear Drive with rudder indicator and control panel mounted at helm station (2021)
- Autopilot 2: Raymarine Evo2 with Mamba Drive 2023
- ** Autopilots are completely independent.Tthey have their own computers, heading sensors and control heads. Toggle switch on main panel allows you to select either Autopilot. They are seperate systems for safety in the event one autopilot fails
- Radar: Raymarine (2023)
- ChartPlotter: 2 x Raymarine, Axiom 12 @ steering pedestals (2023)
- New LED sisplay at nav station 2024
- 4 x Raymarine i70 repeater mounted in cockpit showing wind, speed, depth etc.
- Raymarine wind, speed and depth instruments (2021)
- Raymarine, Class A, AIS (2023)
- Raymarine VHF Ray240E Dual Station WITH DSC (2023)
- Silva Compass (mounted in cockpit)
- 4g/5g Wifi 2023
- Smart TV 2023
- Cameras on board that can be remotely viewed from phone 2023
Safety
- All flares and waterproof canister
- 6 person Liferaft (exp. 2025)
- Life vests and tethers
- Jacklines
- 406 MHZ Epirb (2020)
- 8 x various fire extinguisher
- 2 x fire blanket
Miscellaneous
- All equipment with exception of personal items will be sold with this yacht.
- Extra sheets, halyards, lines.
- Extensive spare parts inventory
- All bedding
- All cookware and crockery
- Cleaning supplies, deck brushes, buckets etc.
- Charts for Mediterranean and various pilot books
- Various nautical books
- Extensive inventory of tools
- 3.1m Suzimar tender - Sponsons cover new in 2021
- 15 Hp, Yamaha outboard.
Owners Comments
We bought Nova Vida as a safe and spacious yacht to undertake some family adventures. We have had a fabulous time and sailed her from one side of the Mediterranean to the other and then back to the UK. We have always felt safe in her and have been hugely impressed by how she handles fairly large seas. Unfortunately our family situation has changed and due to school and sports commitments we no longer have time to fully appreciate Nova Vida.
Nova Vida has exceeded our expectations in all areas. She is fast and easy to sail, can seat eight people in the cockpit, has four cabins offering very flexible accommodation, a galley that works extremely well both at sea and in port and is finished to the standard that Najad are renowned for. More importantly she really is in “turn key” condition and all systems are in full working order and have been tested during our summer cruises.
The new owner could buy Nova Vida in the confidence that she is ready to go and have fun from day 1!
